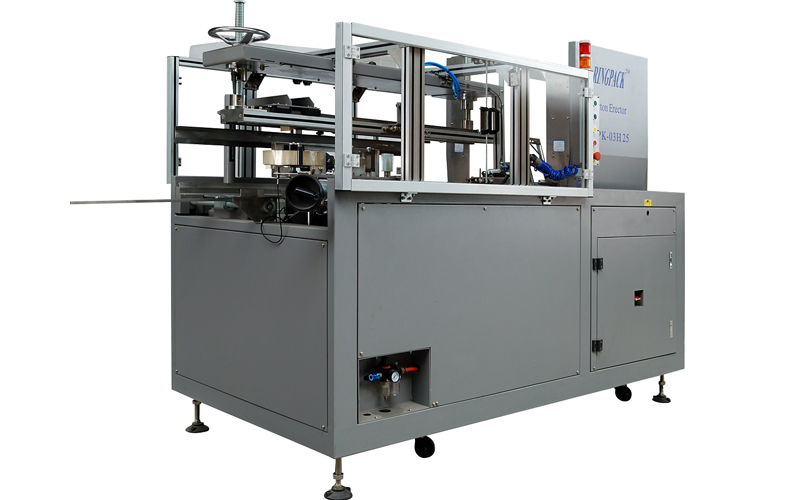

*Precision designed and engineered by expertise This carton erector has been awarded several patents,and has received approval from famous industries around the world.

*Fully cam driven continuous system assures positive and stable motion with maximum stability

*Automatic indication for hot melt glue replacement or cardboard supply.

RPK-03R

Forming and sealing speed: 20-40(cartons)/min
Carton storage quantity : 100pcs(1000mm)
Carton sizes(mm) :
      20cartons : L+W≤900mm  W≤400mm   H+1/2W≤530mm  1/2W≤200
30-40cartons : L+W≤600mm  W≤300mm   H+1/2W≤480mm  1/2W≤200
Power requirements: 4105W(ac380v.3)
Air compressing : 4-5kg/cm2
Air consumption : 600NL/min
Machine weight : 1005kgs
