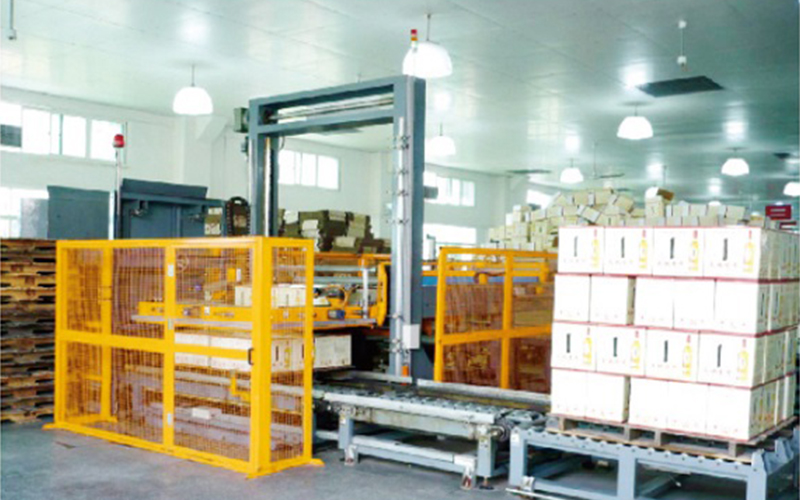

Features have two pallet loading stations: Pallets are automatically loaded in one station while completed pallets are removed from the second station. Once pallet loading is complete, the B30 automatically continues pallet loading of the empty pallet Including one automatic palletizing station and one empty pallet storage station for the automatic changing of the pallets. This unit features an out-feed roller conveyor for discharging the filled pallets.
Automatic wooden pallets magazine
1. fully elector pneumatic operation.
2. manually adjust to suit size of pallet.
3. visual empty magazine signal.
4. capacity for 10-15 pallets.

Technical specifications:
Speed : up to 10-50cartons/minute
Size changeover:15 minutes
Electrical power:6kw
Compressed air consumption: 5-7kgs/cm3
Machine net weight: 3500kgs

Loading  table
Manufactured in 304 stainless stell and a major section of the palletize, the table provides the surface on which boxes are loaded in pattern form for subsequent displacement onto the pallet. All movements are achieved by motors, pinions and chains operation within self lubrication guide sections. Special electro-pneumatic positioning guides, fully adjustable for layer requirements, guarantee layer with square or rectangular form.
