● Fit for sealing uniform size carton in mass production line.
● Automatic flaps folding and, top and bottom sealing.
● Side belts driven, suitable for heavy duty operation.

Standard Specification

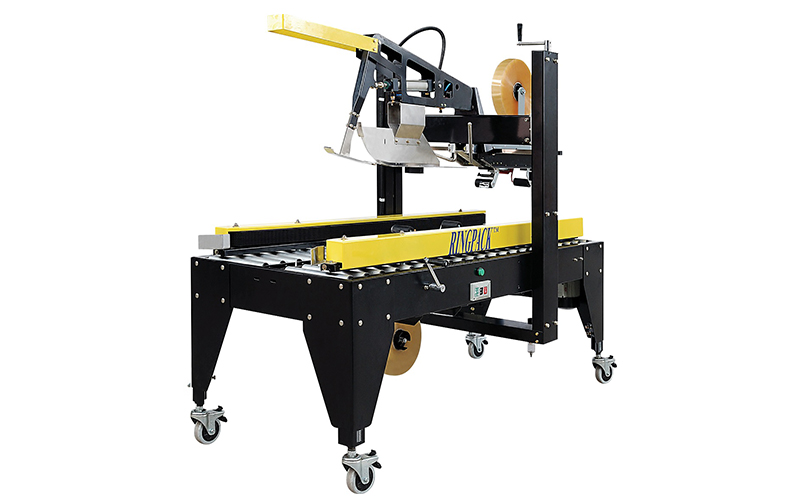

Model       RPC-05
Carton size      (L)200-500(W)150-500(H)150-500mm
Table height     680(min.) ~ 780mm(max.)
Belt speed        18m/min
Machine size      (L)1690(W)830(H)1180mm
Power       110V/220V single phase,
50/60Hz or specified by client
Pneumatic      5kg/cm2
Tape width      48mm, 60mm,75mm (alternative use)
Machine net weight   approx. 180kgs
